Features

• Aerator type: Standard aerator
• Connection type: Flexible connection pipes
• Lever/Handle Type: Single operating lever/handle, Eco function, Hot/Cold symbols
• Mechanical parts: ø 40 mm adjustment part
• Special features: 3S-Installation mounting system
• Spout type: Swivel spout, Swivel angle limitation option
• Color: Chrome
• Temperature controls: Temperature and flow limitation option

Flow attributes

• Eco flow rate 300 kPa: 0.17 l/s
• Flow rate 300 kPa: 0.29 l/s
• Pressure loss with flow (0.2 l/s): 150 kPa

Technical features

• Backflow protection (EN1717): AA
• Connection size: G3/8
• DN size (standard size): DN15
• Hot water: max. +70°C
• Material: Brass

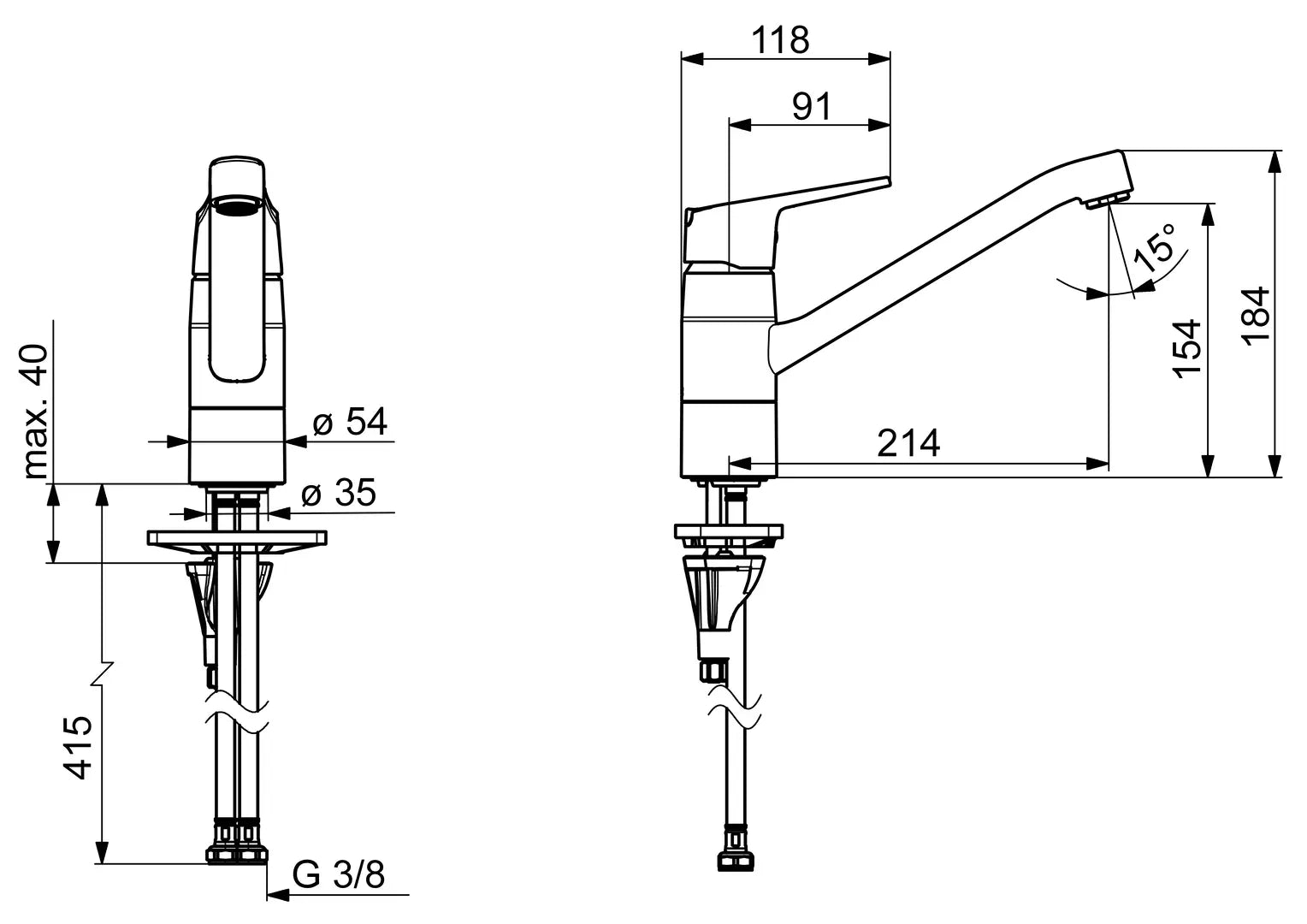

• Reach: 214 mm
• Operating pressure: 50 - 1000 kPa

Articles

• EN standard: EN 817
• Sound class: I (ISO 3822)

Approvals and Declarations

• STF certificate: EUFI29-20000935-TH1

Responsibility

• EPD module A1 (kg CO2 eq.): 7.47
• EPD module A1-A3 (kg CO2 eq.): 11.10
• EPD module A2 (kg CO2 eq.): 0.36
• EPD module A3 (kg CO2 eq.): 3.28
• EPD module A4 (kg CO2 eq.): 0.22
• EPD module B7 (kg CO2 eq.): 4018.80
• EPD module C2 (kg CO2 eq.): 0.02
• EPD module C3 (kg CO2 eq.): 0.02
• EPD module C4 (kg CO2 eq.): 0.34
• EPD module D (kg CO2 eq.): -6.28
