Characteristics

Nozzle type: Standard nozzle

Connection type: Copper connection pipes

Lever/Handle type: One operating lever/handle, Hot/Cold symbols, Eco function

Mechanical parts: ø 40 mm adjustment part

Special features: 3S-Installation fastening system

Spout type: Reversible spout, Turning angle limitation option

Color: Chrome

Temperature controls: The possibility of limiting the temperature and the flow rate

Current attributes

Ecoflow 300 kPa: 0.15 l/s

Flow at 300 kPa: 0.29 l/s

Pressure drop when flowing (0.2 l/s): 140 kPa

Technical characteristics

Back suction protection (EN1717): AA

Connection size: Ø 10 mm

Hot water max. +80°C

Material: Brass

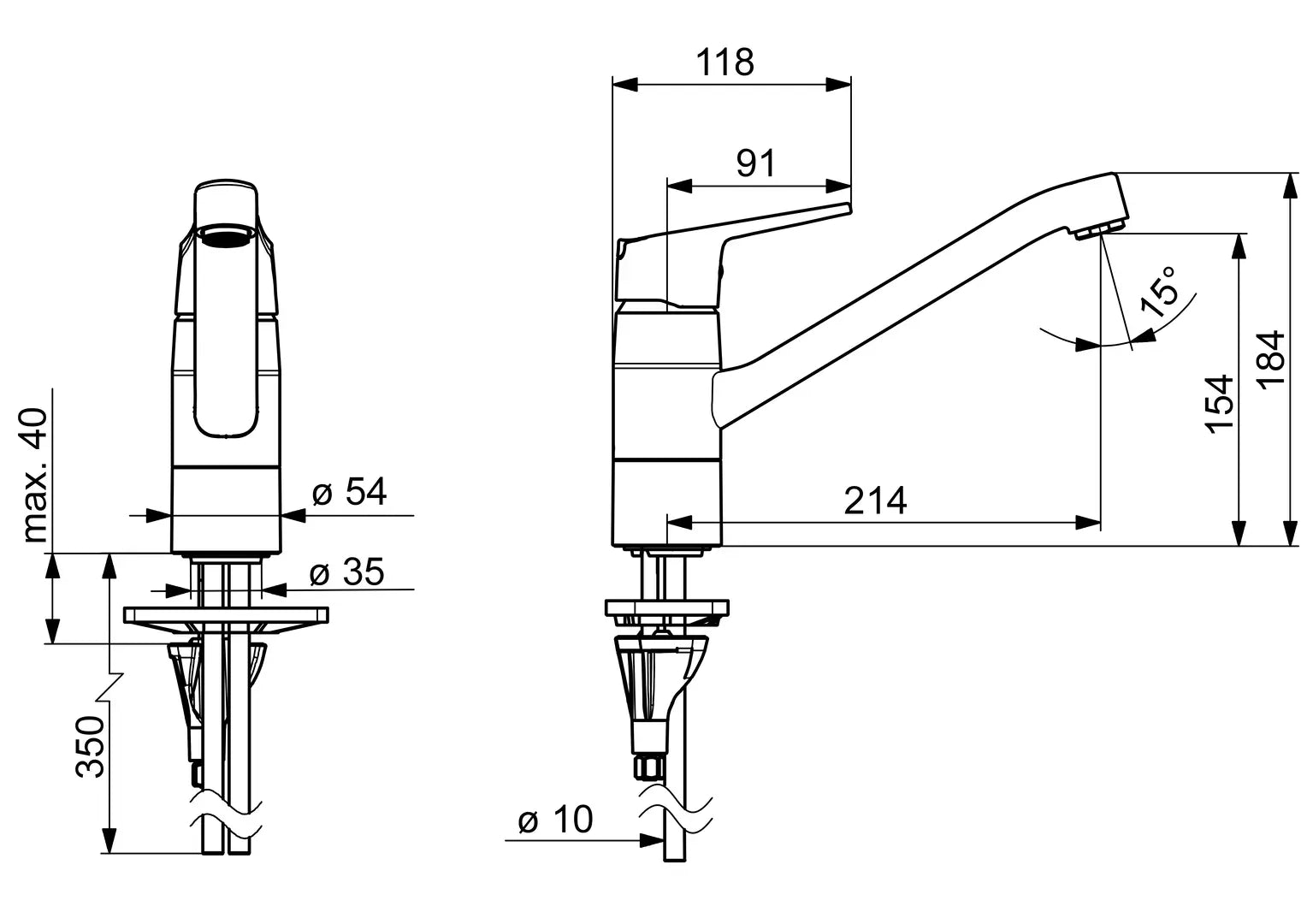

Reach: 214 mm

Operating pressure: 50 to 1000 kPa

Articles

EN standard: EN 817

Sound class: I (ISO 3822)

Approvals and Declarations

STF certificate: EUFI29-20000935-TH1

Responsibility

EPD module A1 (kg CO2 eq.): 9.03

EPD module A1-A3 (kg CO2 eq.): 13.42

EPD module A2 (kg CO2 eq.): 0.43

EPD module A3 (kg CO2 eq.): 3.97

EPD module A4 (kg CO2 eq.): 0.27

EPD module B7 (kg CO2 eq.): 3546.00

EPD module C2 (kg CO2 eq.): 0.02

EPD module C3 (kg CO2 eq.): 0.02

EPD module C4 (kg CO2 eq.): 0.41

EPD module D (kg CO2 eq.): -7.59
